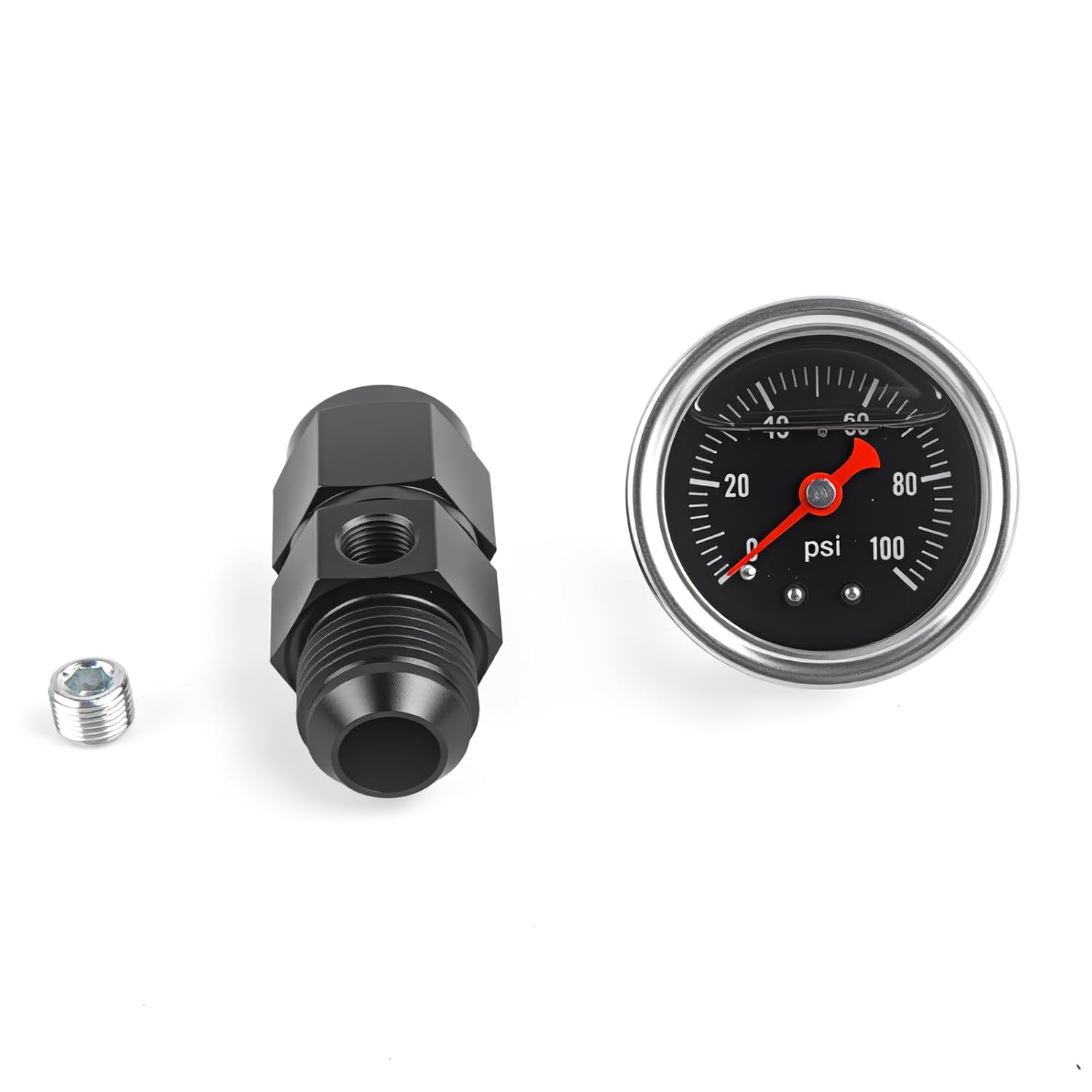

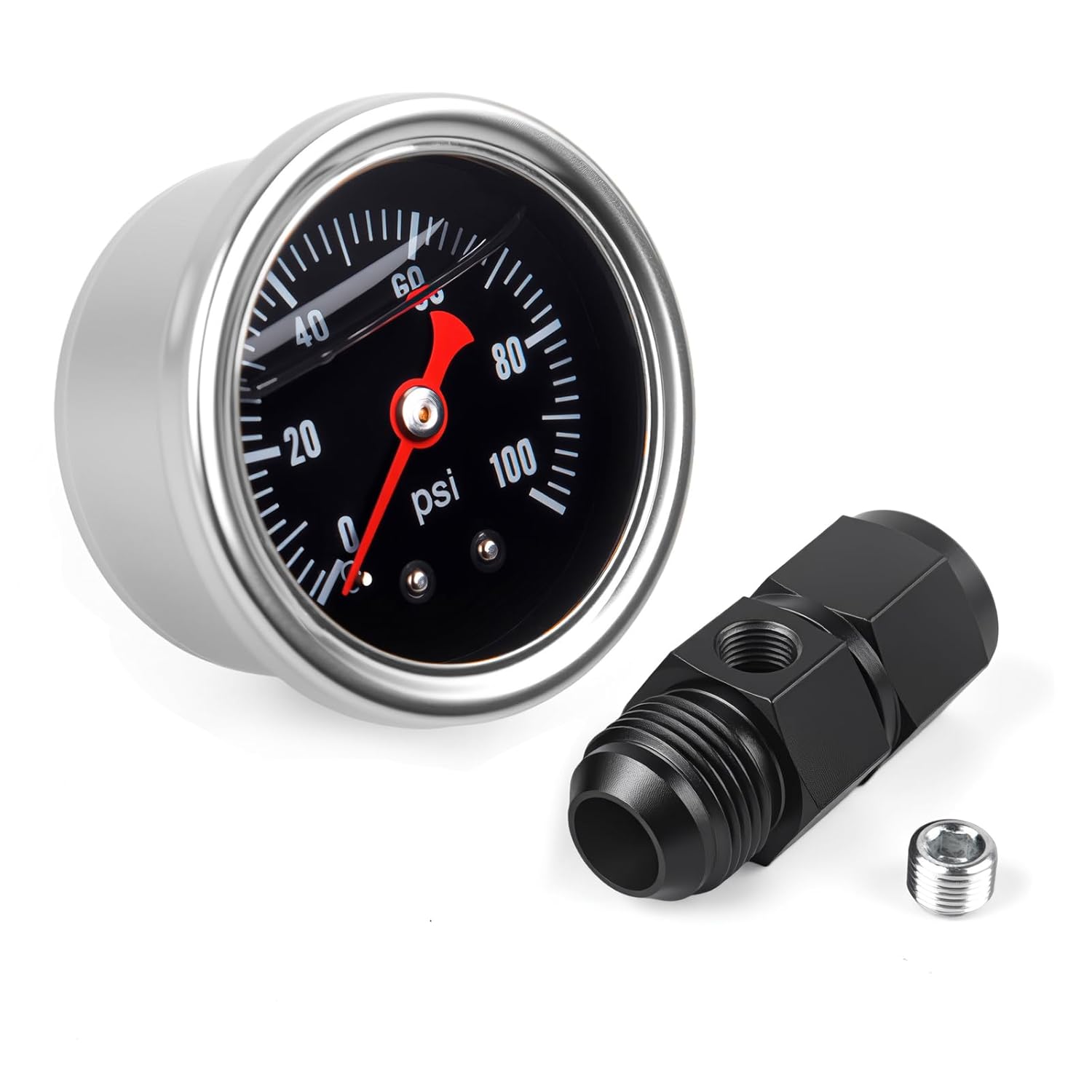

Universal 0-100psi Fuel Pressure Gauge 1/8" NPT Oil Press Gauge with 10AN Male Flare to -10 Female Swivel Fuel Pressure Take Off Fitting Adapter

Overview

• Brand : CNRAQR
• Material : Aluminum, Brass, Stainless Steel
• Item Weight : 4.16 ounces
• Manufacturer : CNRAQR

About this item

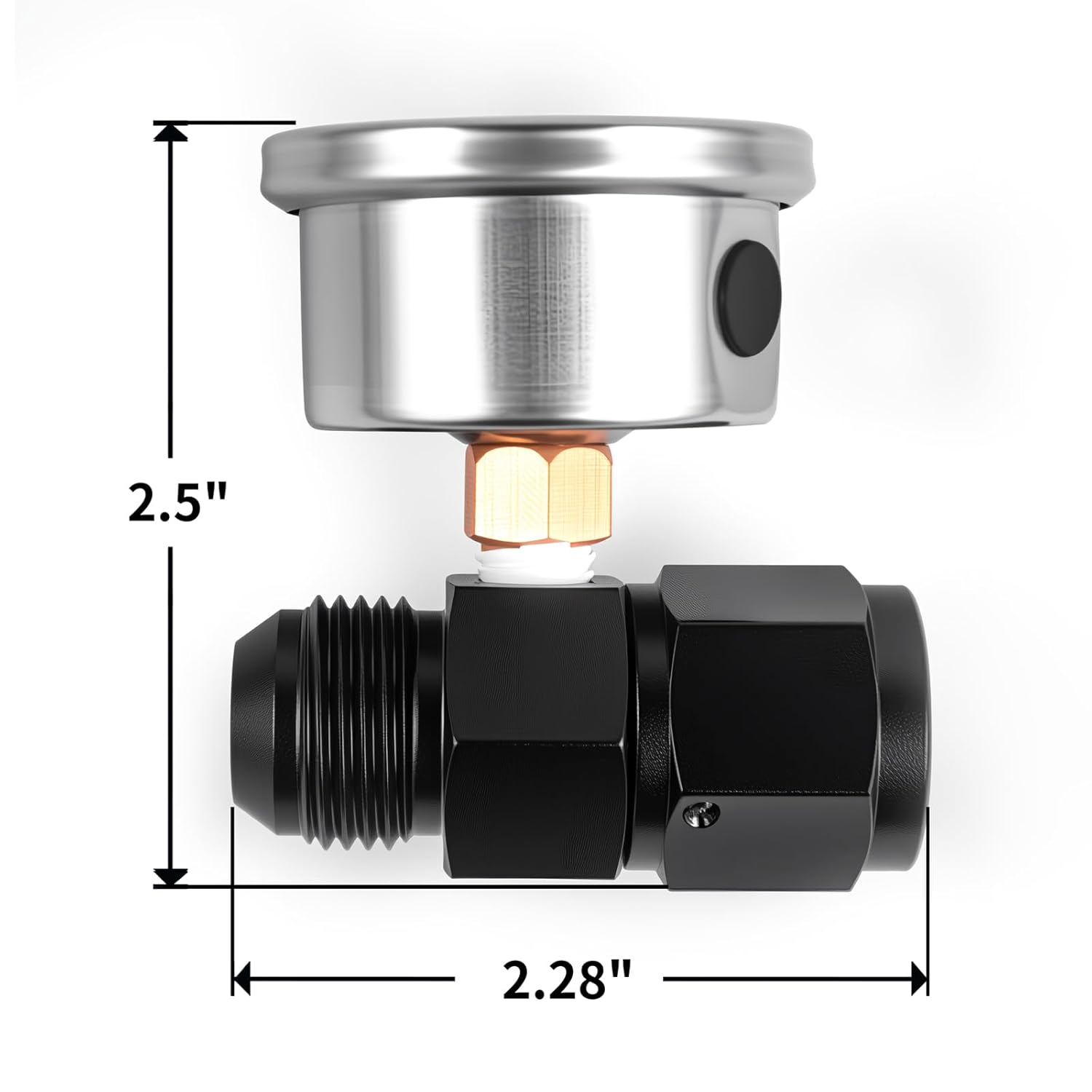

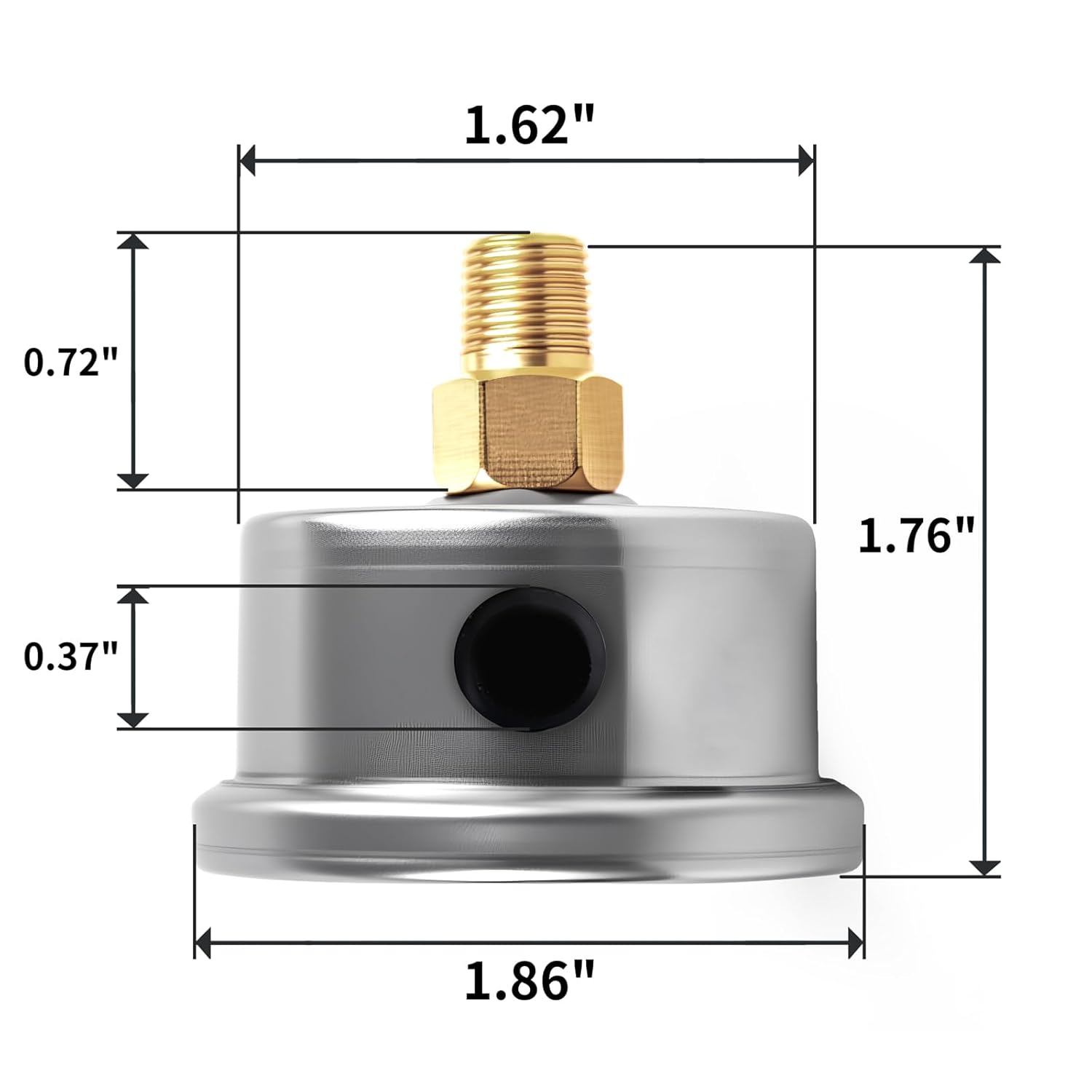

• Gauge Size:Range: 0-100 psi,Thread Type: 1/8" NPT,Dial size: 1-1/2",Gauge Body size(Outermost diameter):1.87",Gauge Body height(Including threads):1.79",Working temperature: -4 to 140 deg F/-20 to 60 deg C

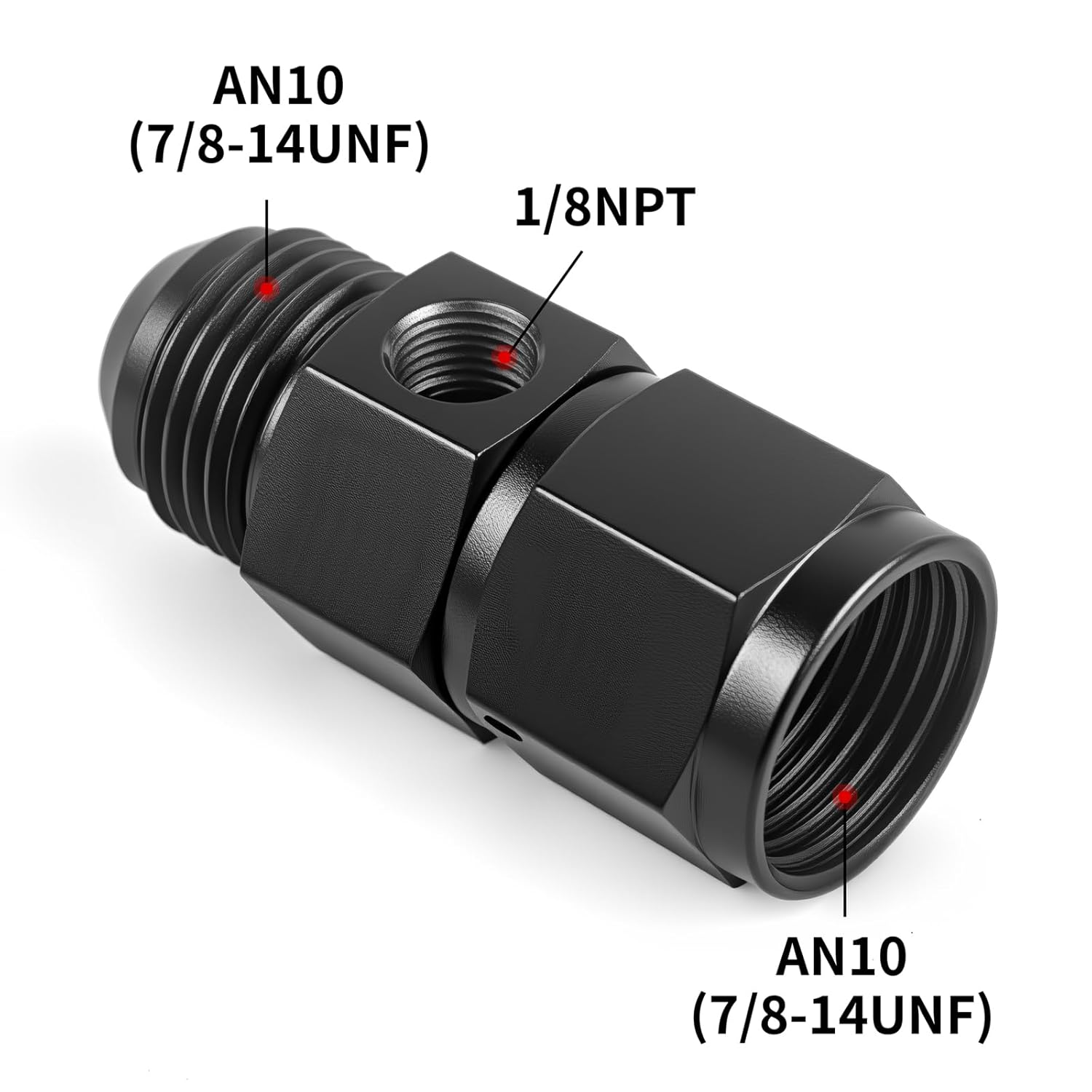

• Adapter Size:10AN Male Flare to -10 Female with 1/8" NPT gauge Port,the thread size of the 10AN is 7/8-14UNF

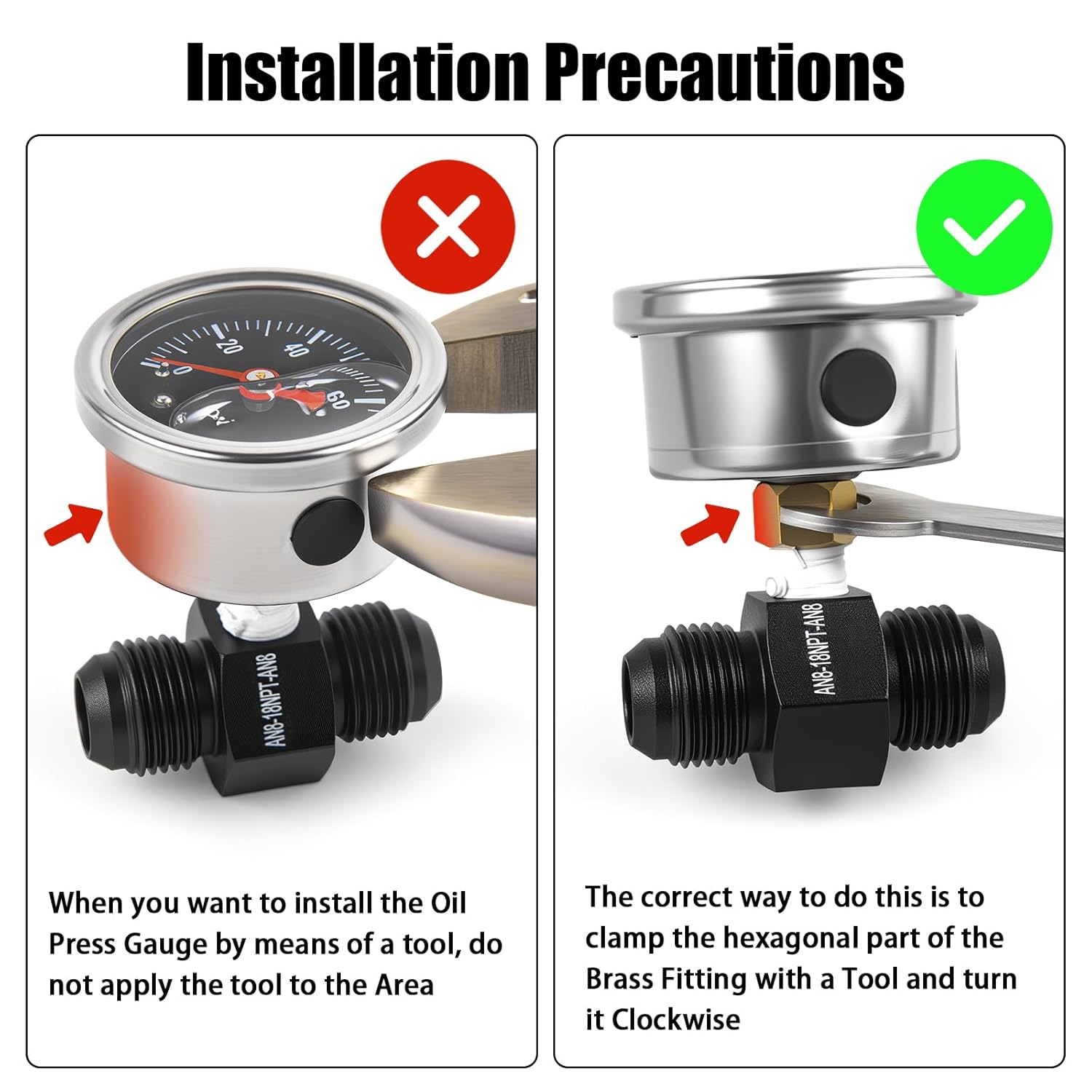

• Sealing:The AN thread of the flare is sealed by a 37 degree angle and the NPT is sealed with a 60 degree tapered.It is highly recommended to use sealant or PTFE (polytetrafluoroethylene tape) at the NPT port.The Liquid filled keeps the needle steady and lubricates the movement to extends the life of gauge
• Material: Stainless steel case, brass wetted parts, glycerin filled, aluminum Fuel Pressure Gauge Fitting Adapter
• Quality Service:When You Encounter Any Questions About The Product, You Can Contact Me As Soon As Possible, And I Will Answer It For You
